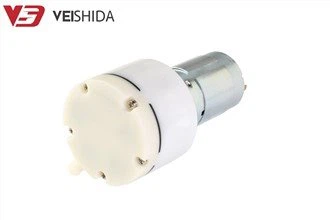

12V DC Small Mini Water Diaphragm Pump

This 12V DC Small mini Water Diaphragm Pump is a brand new high quality water pump. The pumping action is generated based on the DC motor driving the connecting rod to swing the elastic membrane. On the downstroke, the diaphragm draws media through the inlet valve and simultaneously pushes it out through the outlet valve. The diaphragm seals the compressible chamber during pumping. The pump is designed for low power consumption, light weight, small but strong; high efficiency, multi-purpose. Can be used as diaphragm pump, water pump, suction pump, vacuum pump. Applications: fish tank water change, experimental model, inflatable small pool, tea maker, grain and oil pumping station, gas analysis
Blood pressure monitoring, etc.

Company Highlights

Overview

Warranty	3 months - 1 year
Place of Origin	Shenzhen, China
Brand Name	Vshida
Model Number	VAWP-2715
Usage	Coffee machine, water dispenser, tooth cleaner, smart appliances, inflatable bed, fish tank, toilet seat, tea maker, grain and oil pumping station, gas analysis, blood pressure monitoring, water purifier, dishwasher, disinfection machine, etc.
Type	Air Pump/Vacuum Pump/Water Pump
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Diaphragm pump
Rated Voltage	DC 6V
Rated Current	≤430mA
Max Water Pressure	＞20PSI
Power	3.0W
Water Flow	≥600mL/Min
Maximum Vacuum	≥300mmHg
Material	Aluminum
Operation Temperature Range	5-45℃
Noise Level	≤60dB
Payment terms	30% TT as deposit,70% TT balance before delivery
Certificate	IATF16949
Customized	Acceped

Product Description

We have an independent research and development team to meet the customization needs of most customers. Customized items: nozzle direction (air inlet, air outlet), flow, pressure, motor (length, thickness, life), etc.

Product Parameter

Rated  Voltage	Rated Current	Max Water Pressure	Water Flow	Noise Withload	Life test
DC 12.0V	≤280mA	＞20PSI	≥600mL/Min	≤60dB	≥400H
DC 6.0V	≤430mA	＞20PSI	≥600mL/Min	≤60dB	≥400H
DC 24.0V	≤150mA	＞20PSI	≥600mL/Min	≤60dB	≥400H

Product Size

The above micro vacuum pump information is for reference only. The specific performance parameters can be adjusted and designed according to customer needs. The independent R&D team can meet the customization needs.

Product Details

	100% actual photos
The surface has corrosion-resistant technology added to it, and a reliable, low-heat, low-noise 370 motor is employed.		There are two brush feet at the bottom of the pump, which is more convenient to complete various welding processes, the wiring is more convenient, and it is not easy to damage

Micro Water Pump Description:

1. Mini size design, with imports and exports, easy to install, and provides a lot of convenience, high -altitude flowing mini electric vacuum pumps, good performance;
2.12V DC Small MINI WATER DIAPHRAGM Pump is made of high -quality aluminum and plastic, which is resistant to corrosion and durability;
3. If it continues to run continuously for 24 hours, the service life is 450 ~ 550h. If the pump is not continuously operated, it is used intermittently, and the life is prolonged.
4. The DC voltage is used, so you need to correctly select the DC power supply that match the product voltage, such as: battery, charging treasure, battery and other DC voltage power supply. If you need to use 220V household power, you need to choose the matching power adapter for conversion to conversion Only to use.
5. Widely used for air sampling, instruments and equipment, chemical industry, home appliances and other fields

Company Strength

Shenzhen Vshida Micromotor Co., Ltd. is a micromotor manufacturing enterprise integrating professional R&D, production and sales in Shenzhen. Always adhere to the "quality first, excellence, continuous improvement, customer satisfaction" business philosophy, has been highly recognized by many customers at home and abroad. The main products are precious metal brushed micro motors, carbon brush micro motors, gear reduction motors, brushless motors, hub motors, air gun motors, water pumps, coreless motors and other micro DC motors to meet customer customization needs; more than 30 R & D Personnel, more than 40 production lines, more than 300 sets of automation equipment, more than 500 front-line employees, and a daily output of 200,000 motors to meet customer customization needs.

All products have passed a series of reliability tests, including noise test, waterproof test, life test, impact test, storage test, salt spray test, etc. More than 300 high-end automation equipment and more than 40 assembly lines provide high-quality guarantee for your motors.

Product Certificate

Through our continuous efforts, we have passed the ISO 9001:2015 and IATF16949:2016 quality management system certifications to meet customers' needs for certificates. There are also a number of international certifications and patent certifications. Please contact me for more information.

Our partners

Over the years, we have invested a lot of time and energy in the electric small pump industry, and have become a supplier of micro motors and micro pumps for many internationally renowned companies. We look forward to becoming your partner in China.

Application

Micropumps are used in a wide range of fields, including household appliances, medical care, fitness equipment, coffee machines, water dispensers, tooth cleaners, smart appliances, toilet lids, breast pumps, vacuum freshers, environmental monitoring, etc., and can also be customized for specific fields design, you can contact me to obtain samples for performance testing.

Why Choose Us

Transport Packing

Shockproof foam packaging, the right carton size. If you require specific packing services, kindly contact us in advance.

Payment & Delivery

12V DC Small mini Water Diaphragm Pump Introduction

 The formation form of the water system is the driver's part+system. There are two interfaces on the system. The water comes in from the entrance of the water, and the water pump is used in this form. Water pump (definition: Generally, increase the liquid, transport liquid, or increase the pressure, that is, the mechanical energy of the original motivation to the liquid can be called the water pump that can be the machine that reaches the liquid from the surface.)
Basic principle of micro -diaphragm pump: The circular motion of the motor, through the mechanical device to make the diaphragm inside the pump, a duplex movement, thereby compressing the liquid in the pump cavity of the fixed volume. The pressure difference between the atmospheric pressure of the outside world is caused by the pressure. Under the influence of the pressure difference, liquid pressure (suction) into the pump cavity is discharged from the drain. Application scope: Because the vacuum pump does not pollute the working medium, and it has the advantages of small volume, low noise, maintenance -free maintenance, and can operate for 24 hours in a row. Therefore, micro -liquids are used as power devices. Help, scientific research, instrumentation, chemical analysis, medical care, medical and health, biological engineering, automatic control, environmental protection, water treatment, environmental protection and other fields.



Professional manufacturer to meet your customized needs, please contact us to get samples for testing.
